MECLINE
The Mec Line mechanical systems for the window remote control are super-tested, reliable, economical, easy and quick to install. The products are constantly improved thanks to the greatest experience in the window manual controls field. The movement transmission from the control operator to the opening mechanism is effected by a steel helical cable which runs inside a steel conduit. The installation must be carried out in order to allow the cable working in pull action during the load operation (ex. in the closing phase for bottom hinged windows and in the opening phase for top inged windows).
Every system has to be provided with the following items:
- 1) CONTROL OPERATOR, flat, mini, simple, concealed and geared operator.
- 2) TRANSMISSION ELEMENTS: cable, conduit, connectors, saddles, lock springs, end plugs.
- 3) OPENING MECHANISM, chain openers, forks and locking openers for bottom hinged windows.
To open no more than one window with one control operator, the previous items are also contained all together in the "BRAVO" or in the "KIT for BOTTOM or TOP HINGED WINDOWS". In case of installations with more than one locking opener or fork, rotary junction boxes are required. For a right installation the tool for conduit preparation and the conduit bender are very useful.
CAT-Manual Chain Opener

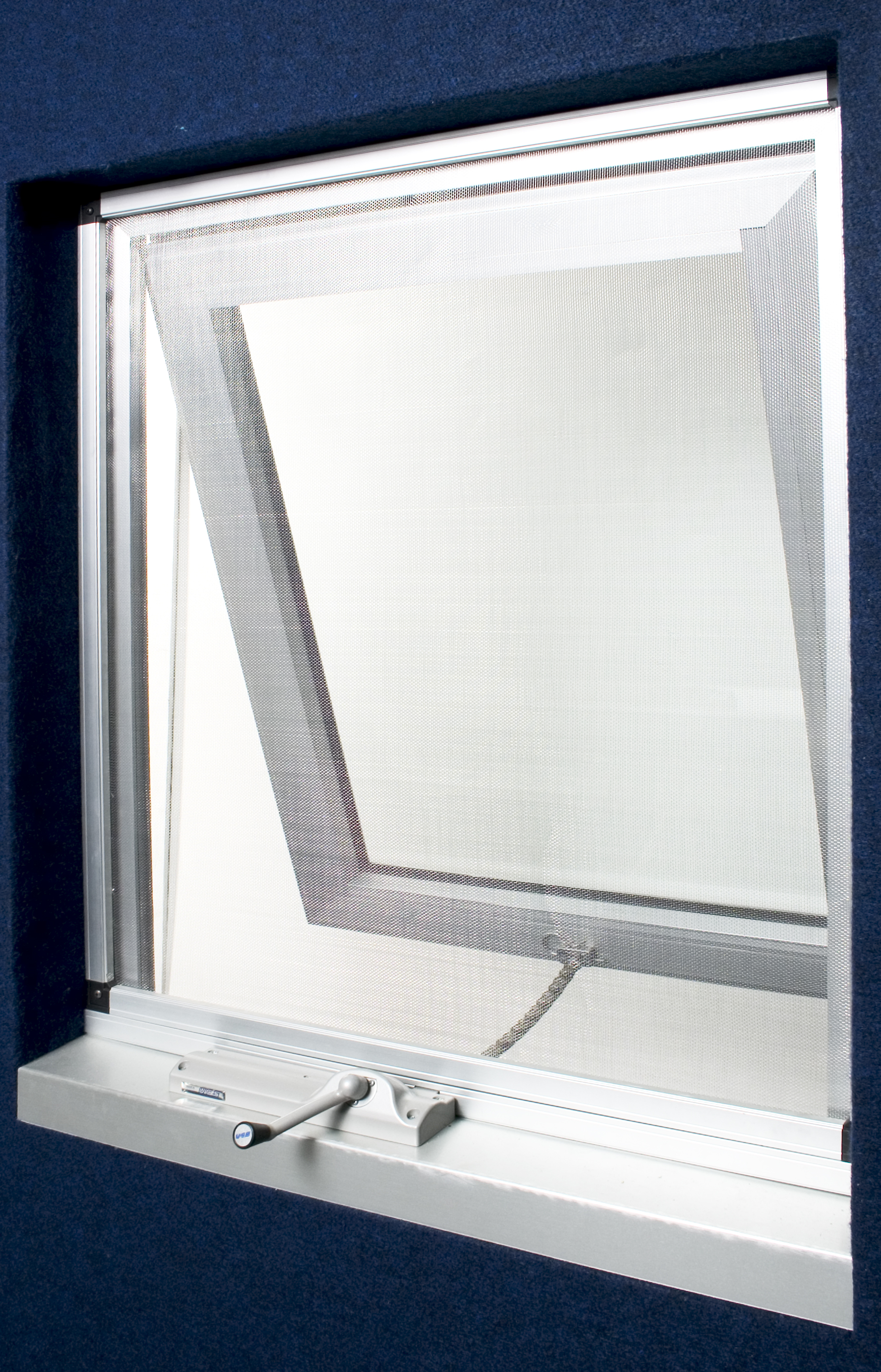

- Manual chain operator for skylights, roof windows and top hinged windows.
- Easy and quick installation on wood, metal and PVC windows.

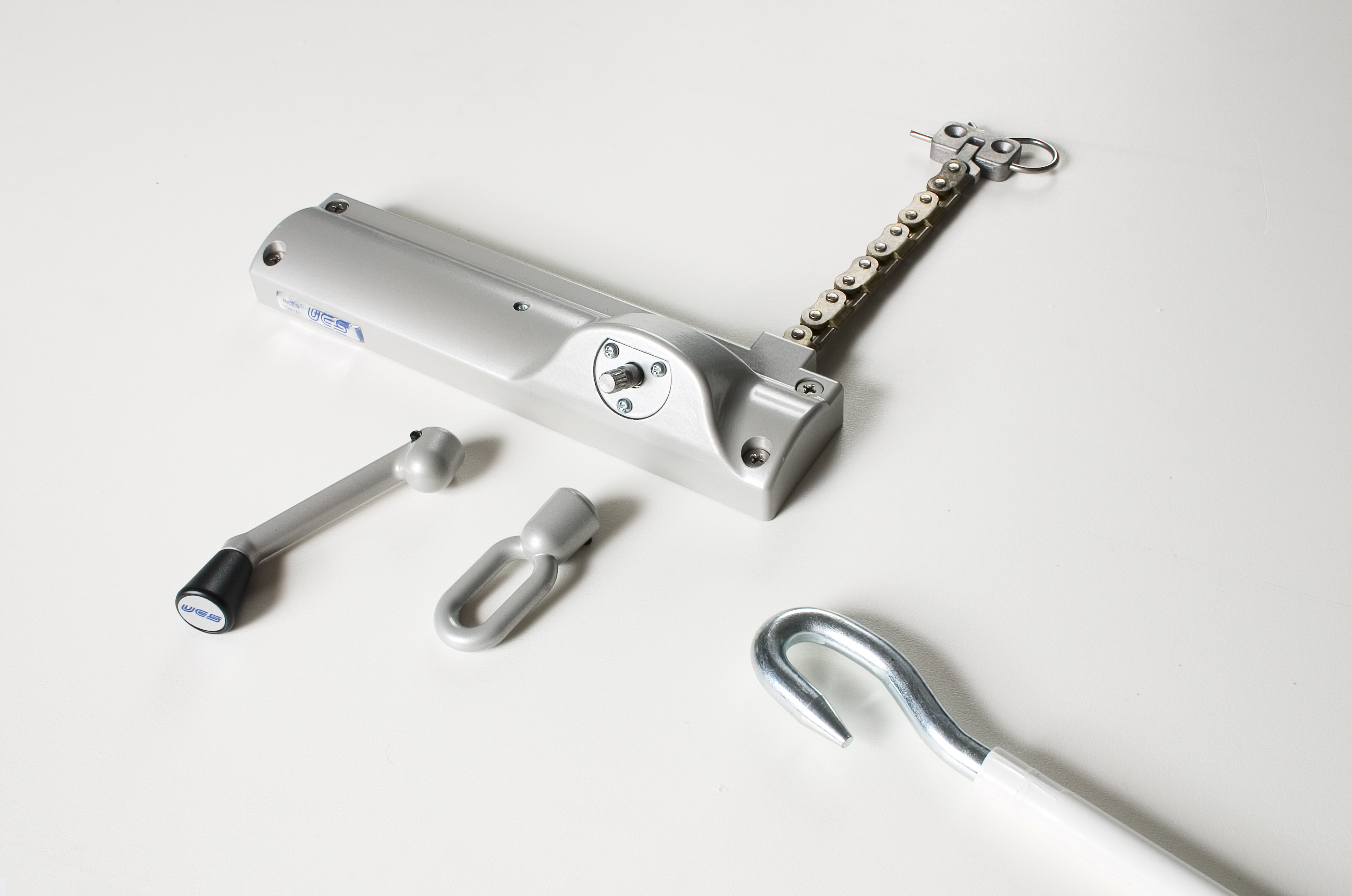

- The CAT chain actuator can be equipped with a handle for installation on windowsill or eyelet for operation by crank handle for skylights or roof windows.
- Maximum opening approx. 280 mm. It is possible to stop the sash in any position.

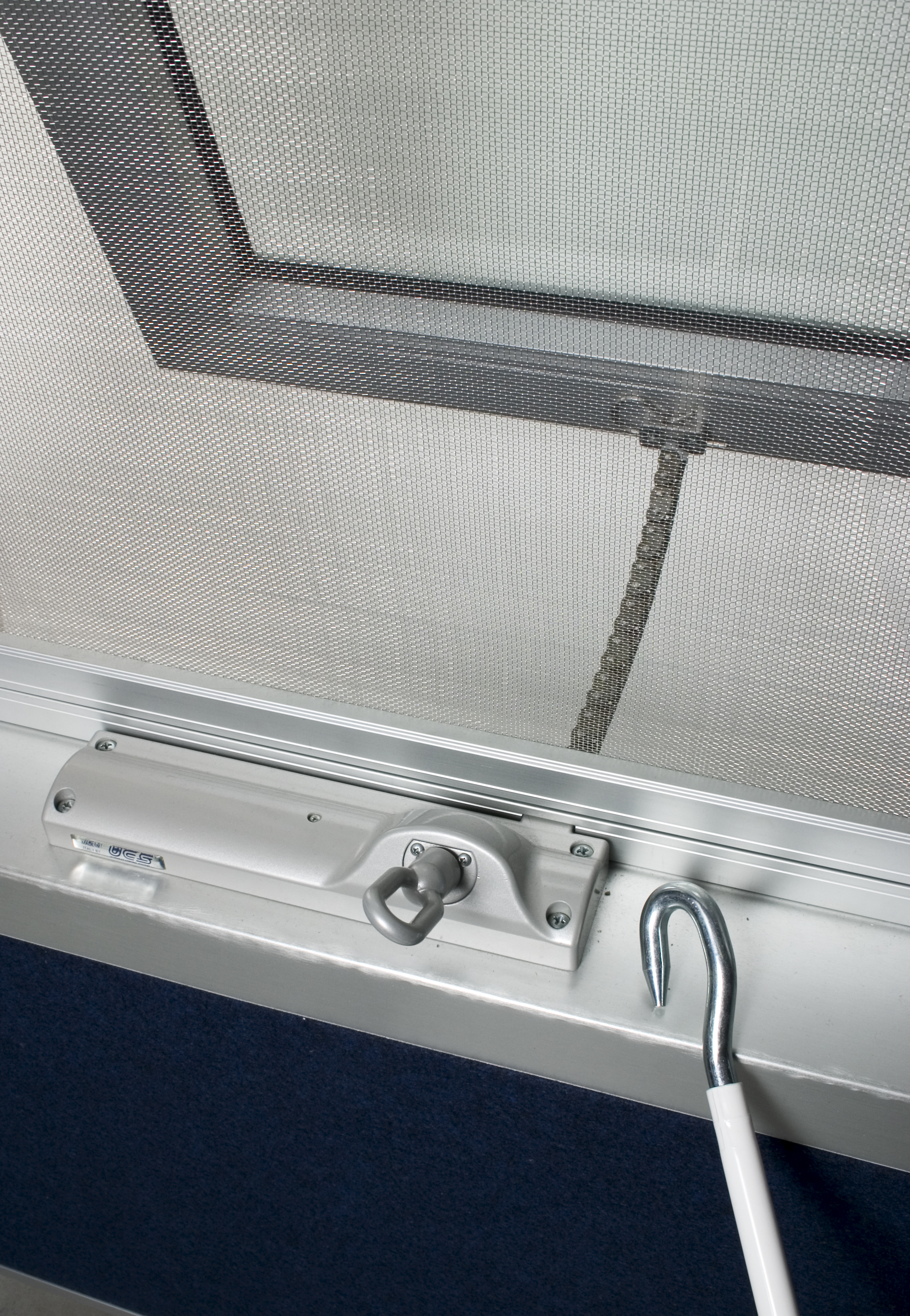

- Allows window operation without remove any insect screen.
- When closed it is not possible to open the window from outside.
- Smooth and easy operation.
- Quick release system for easy window cleaning.
- Suitable for windows with more than 300 mm height.
SPECIFICATION PROSPECTS
Ultraflex Control System manual actuator with chain for operating top hinged windows by handle or skylights by eyelet and crank handle. Maximum stroke 260 mm.
