QUASAR
MAIN FEATURES
- High performance in small die-cast aluminum casing (47 x 32 mm), powder painted.
- Chain in double stainless steel links.
- Chain exit in central position.
- Quick and easy installation: the manual closing position regulation is not required.
- The stop in closing position is regulated by an electronic limit switch control.
- Electronic stop in the intermediate positions in case of overload.
- SYNCHRO versions are equipped with an integrated speed synchronization control board for the installation of more than one actuator on the same vent, avoiding any external control panel. AC version: 1 Synchro Quasar AC + 1 Synchro Quasar DC (max 2 couples), DC version: max 4 Synchro Quasar DC.
- F-SIGNAL versions provide opening and closing feedback signal (free potential, maintained contact), activated by the current limit.
- Suitable for combined installation with the additional locking device E-LOCK or PLUSULTRA.
- DRAWBRIDGE version is suitable for installation on bottom hinged windows, opening outwards 90°, for Smoke Ventilation.
- QUASAR DC version with IP42 protection class, for a higher resistance against atmospheric agents.
CONFORMITY TO STANDARDS
The 24 V DC version is suitable for installation on Smoke and Heat Exhaust Ventilators (SHEV) in conformity to European Standard EN 12101-2, tested by Institute Giordano.

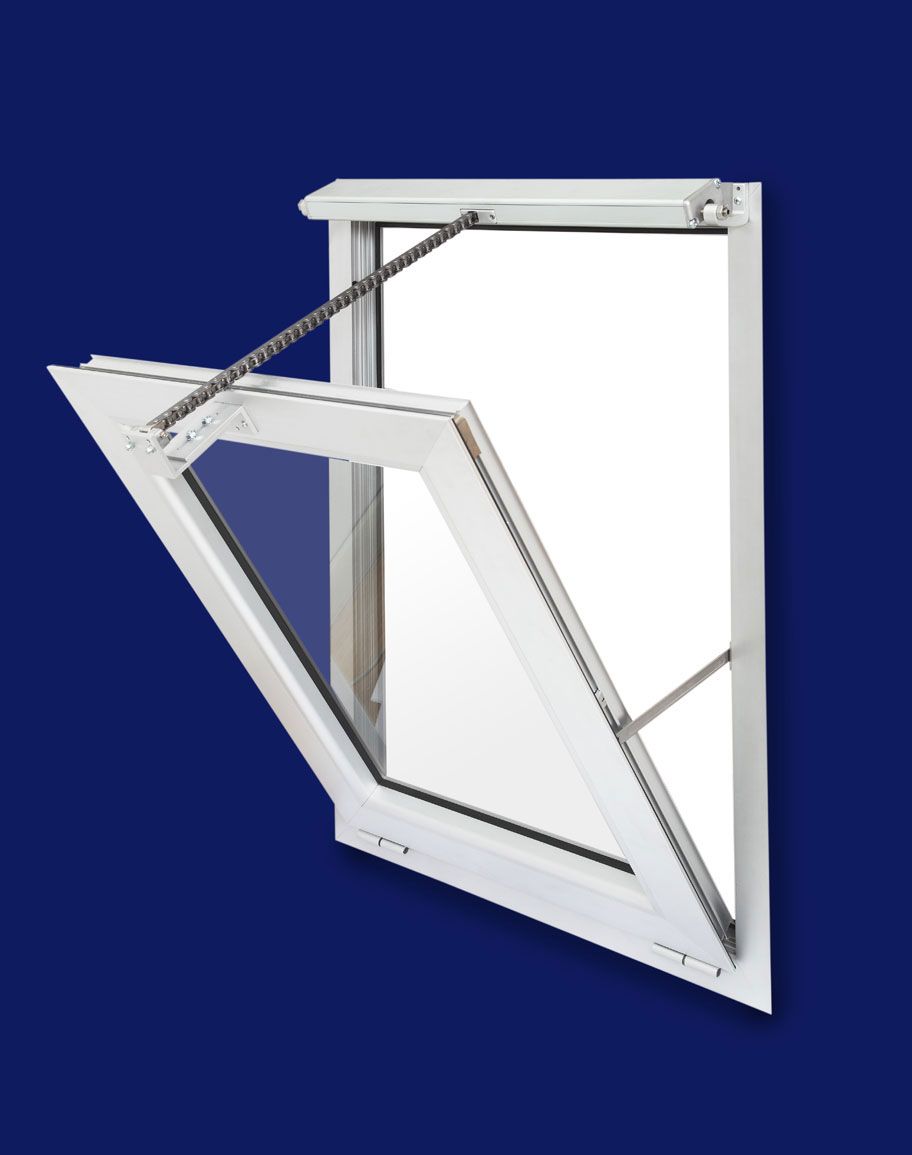

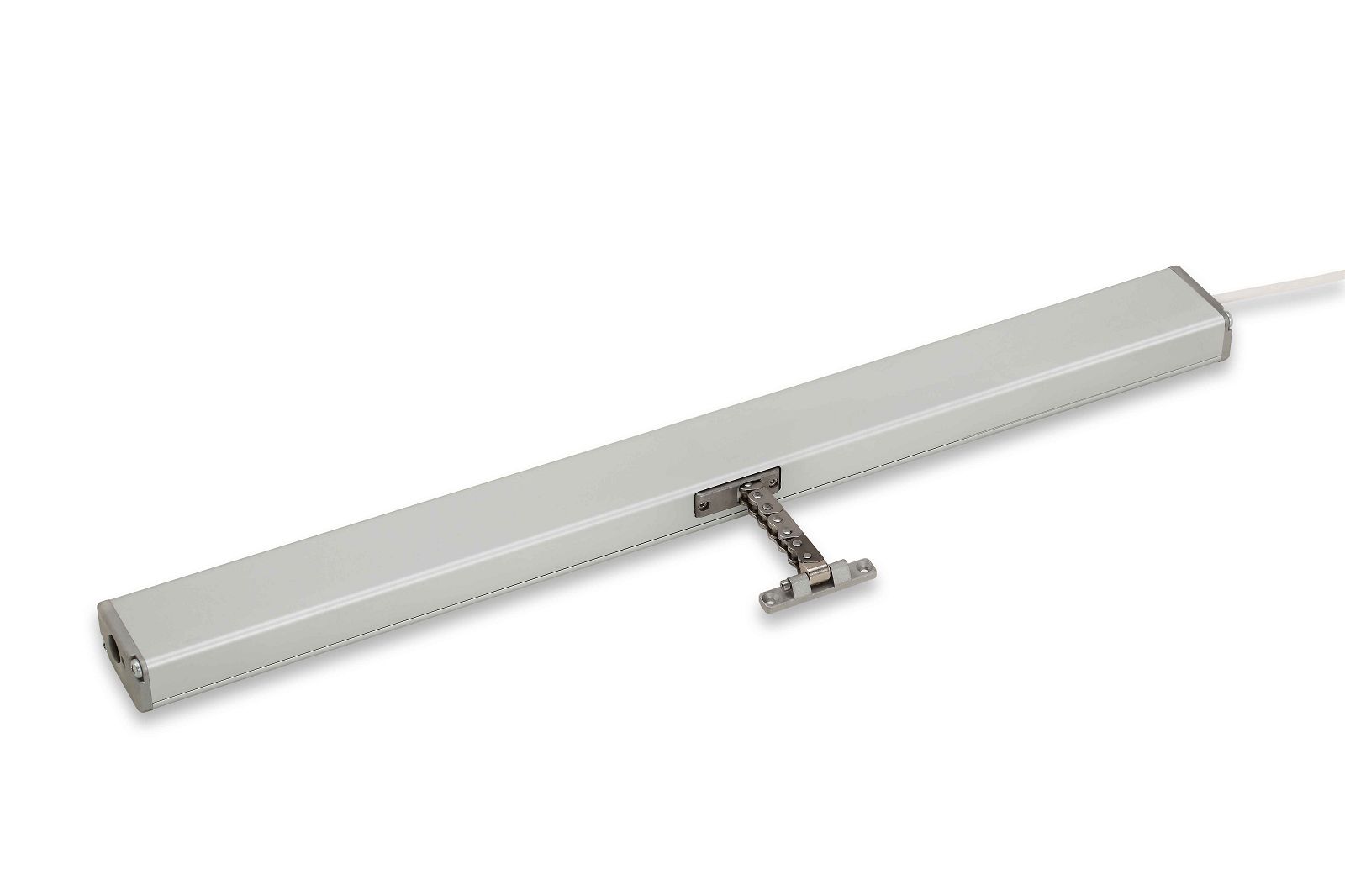

QUASAR L
MAIN FEATURES
- Available 3 different strokes: 600 mm - 750 mm - 1000 mm.
- Chain in double stainless steel links.
- Anodized (silver) or painted (white or black) aluminum casing.
- Quick and easy installation: the manual closing position regulation is not required. The stop in closing position is regulated by an electronic limit switch control.
- Electronic stop in the intermediate positions in case of overload.
- Easy replacement of the cable in case a different / longer cable or a different colour is required; upon request it is possible to supply actuators with cable exit by the opposite side.
- Supplied with 3 m cable and pivoting brackets for top hinged windows.
- SYNCHRO versions are equipped with an integrated speed synchronization control board for the installation of more than one actuator on the same vent, avoiding any external control panel. AC version: 1 Synchro Quasar L AC + 1 Synchro Quasar L DC (max 2 couples), DC version: max 4 Synchro Quasar L DC.
- F-SIGNAL versions provide opening and closing feedback signal (free potential, maintained contact), activated by the current limit.
- Suitable for combined installation with the additional locking device E-LOCK or PLUSULTRA
- QUASAR L DC version with IP42 protection class, for a higher resistance against atmospheric agents.
CONFORMITY TO STANDARDS
The 24 V DC version is suitable for installation on Smoke and Heat Exhaust Ventilators (SHEV) in conformity to European Standard EN 12101-2, tested by Institute Giordano.
