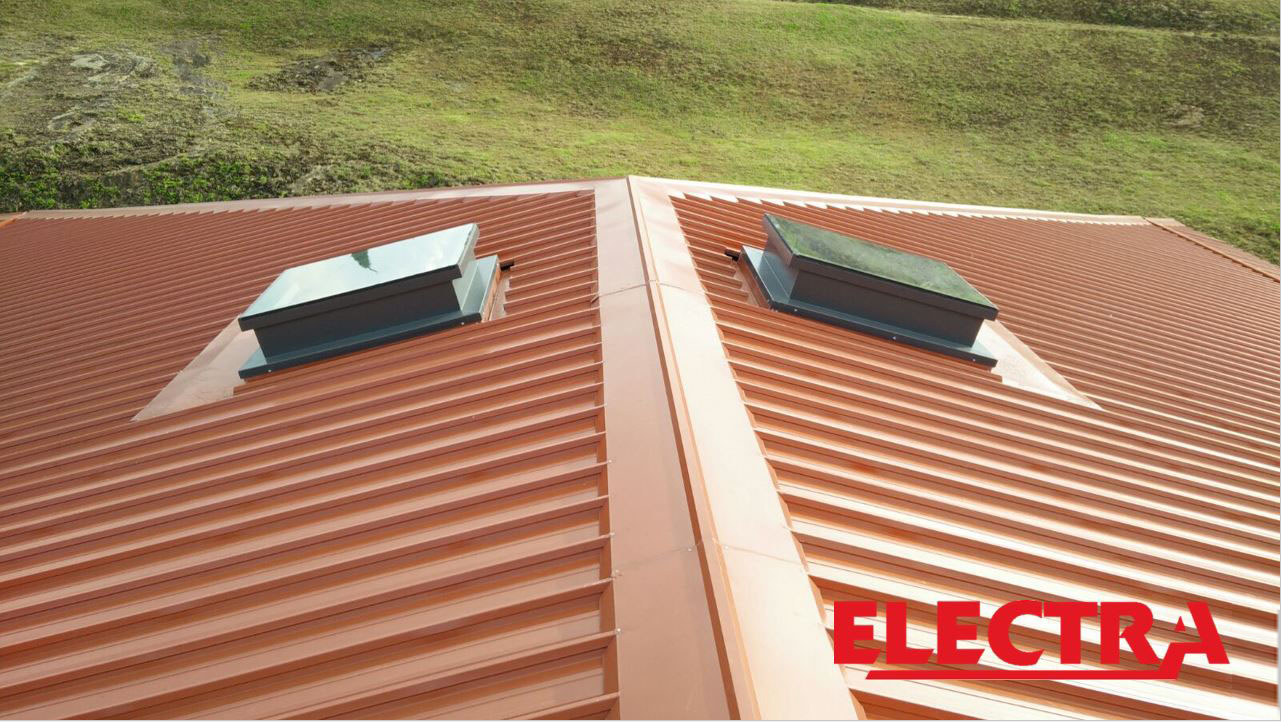

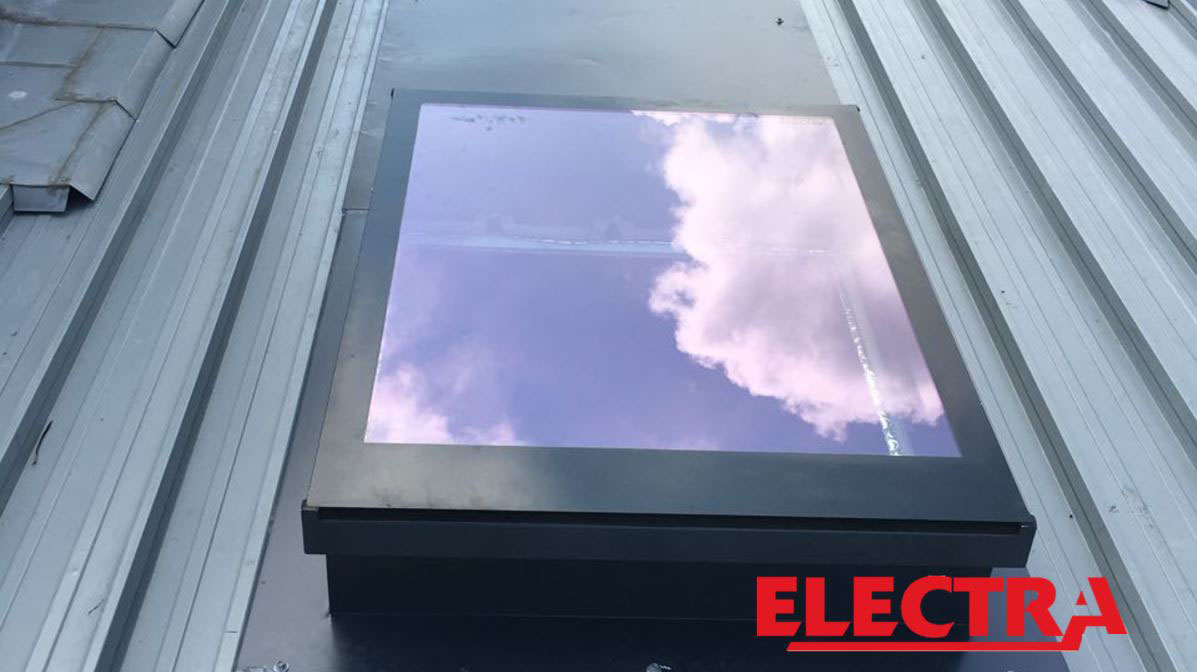

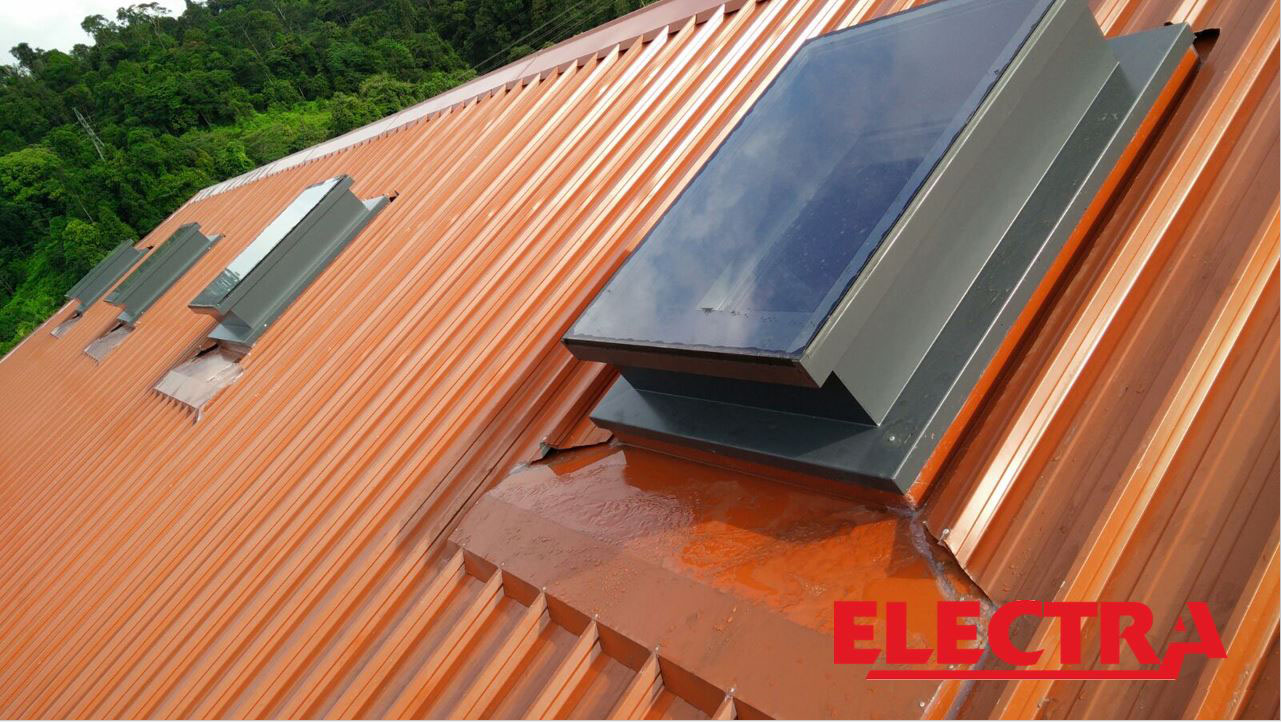

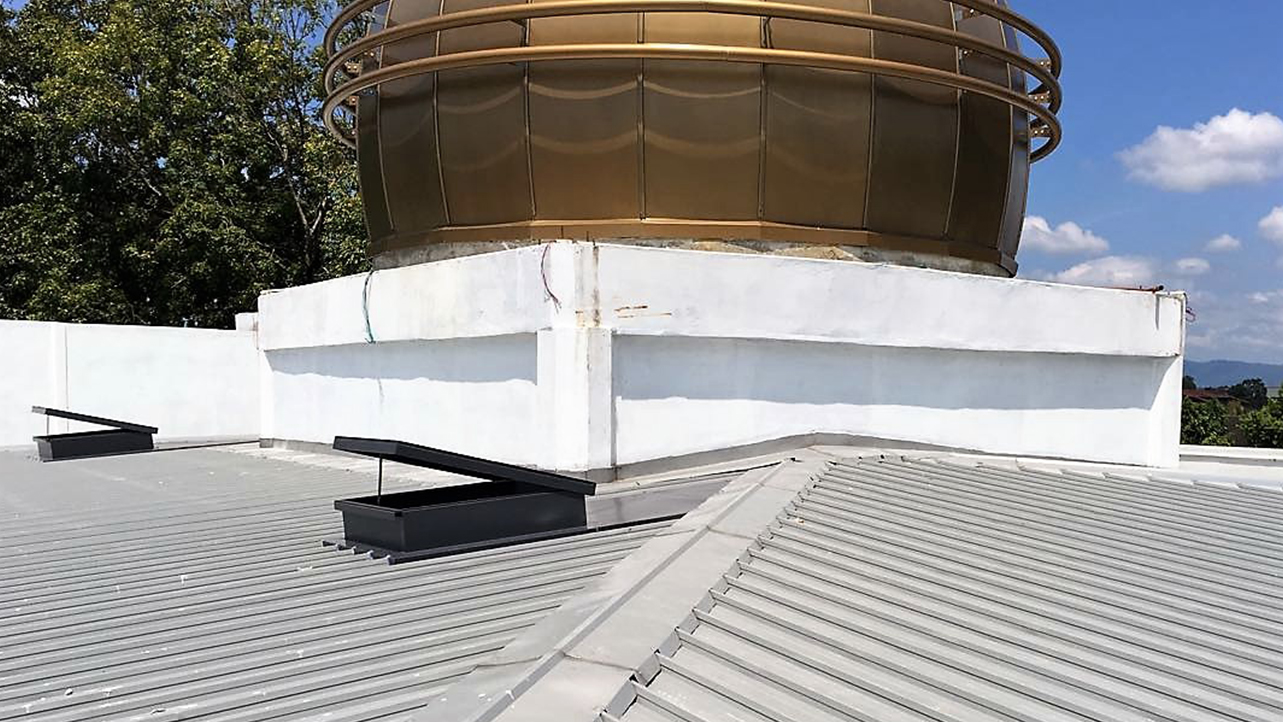

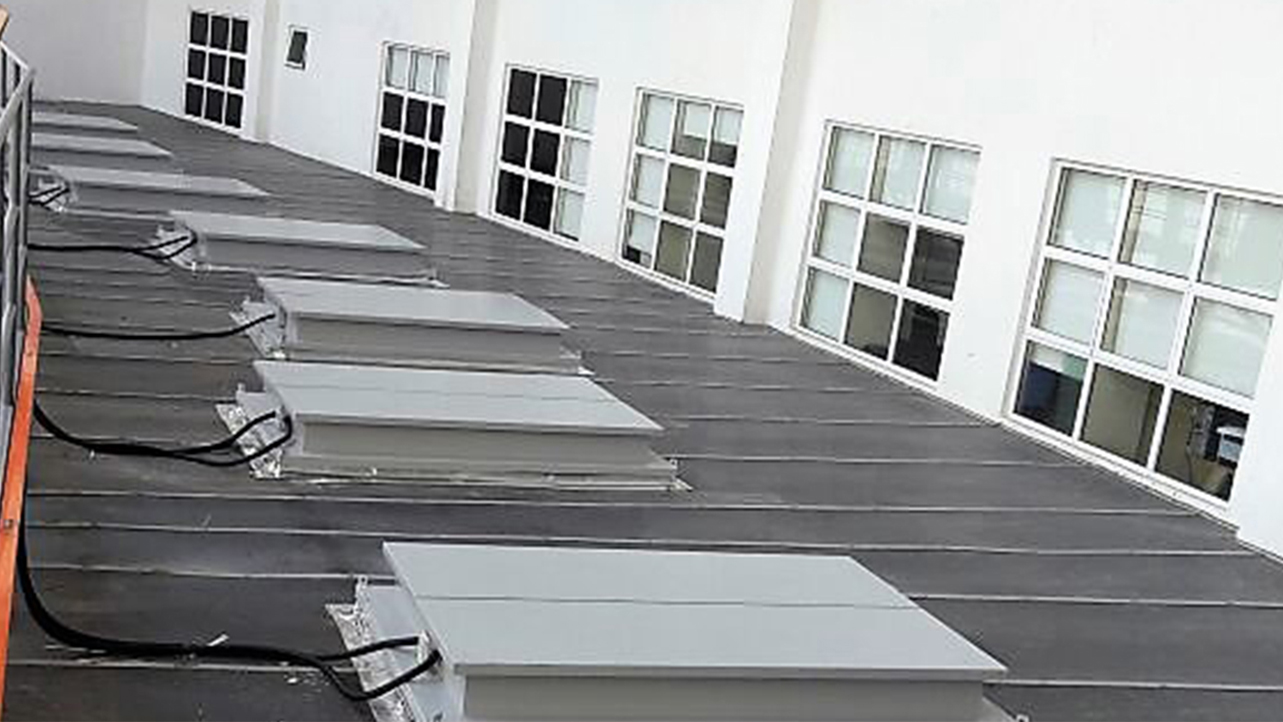

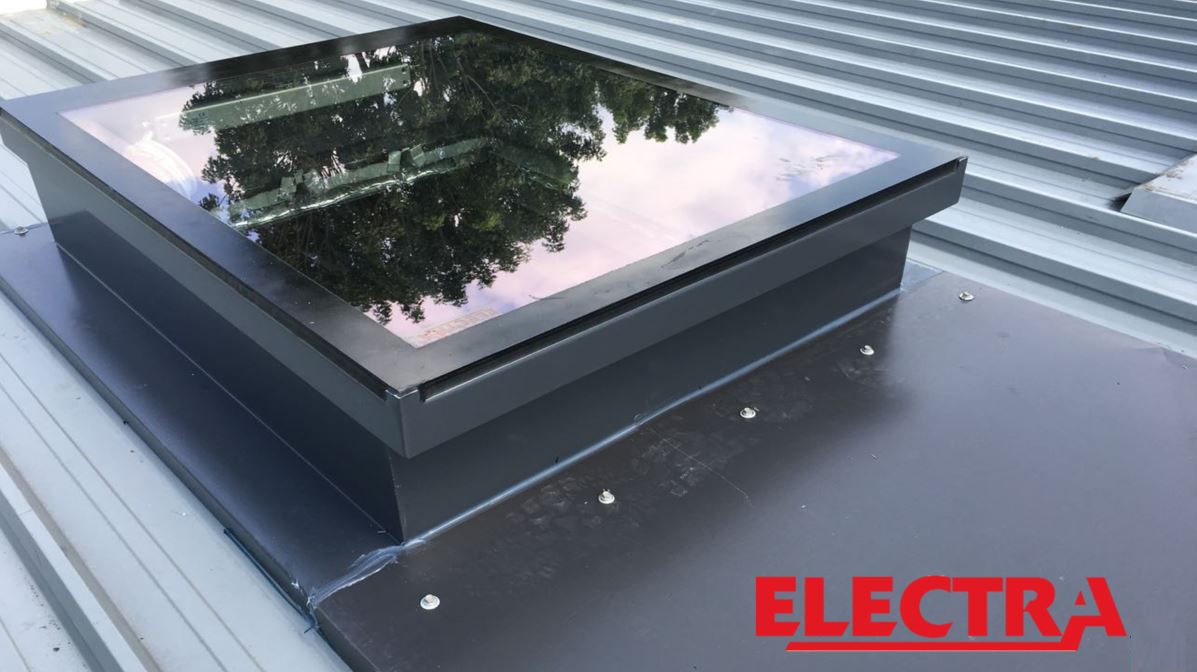

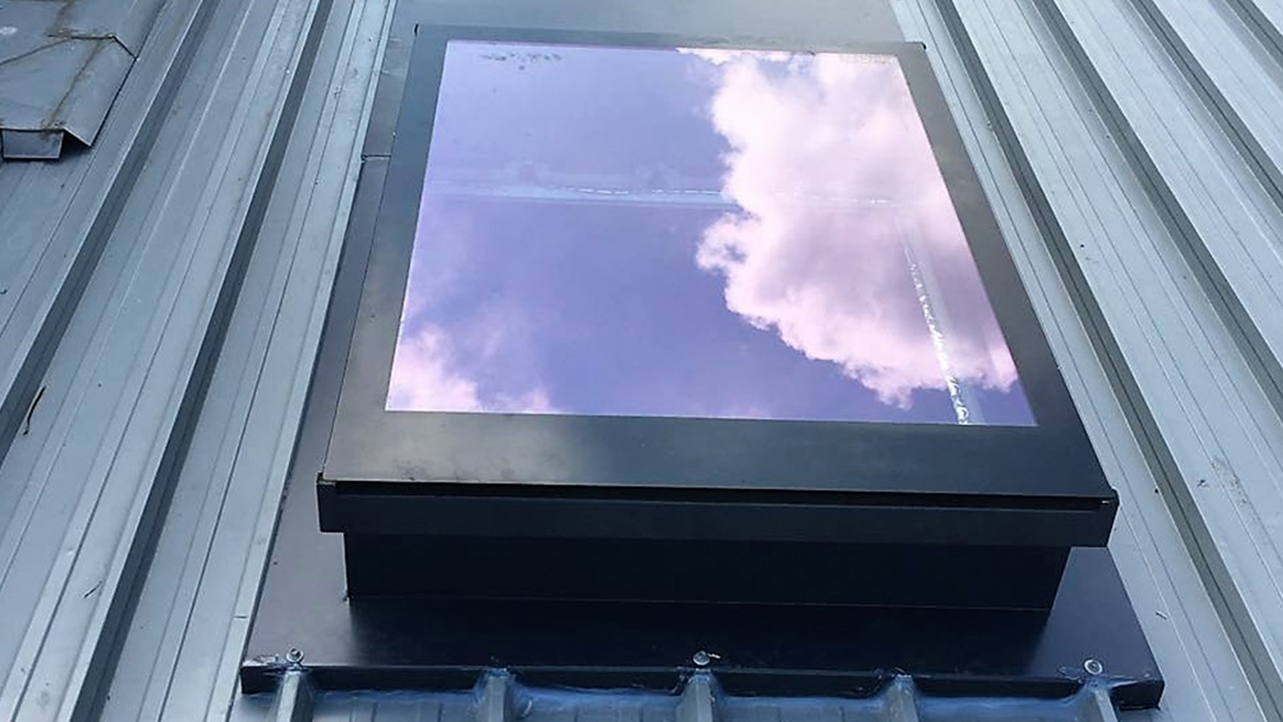

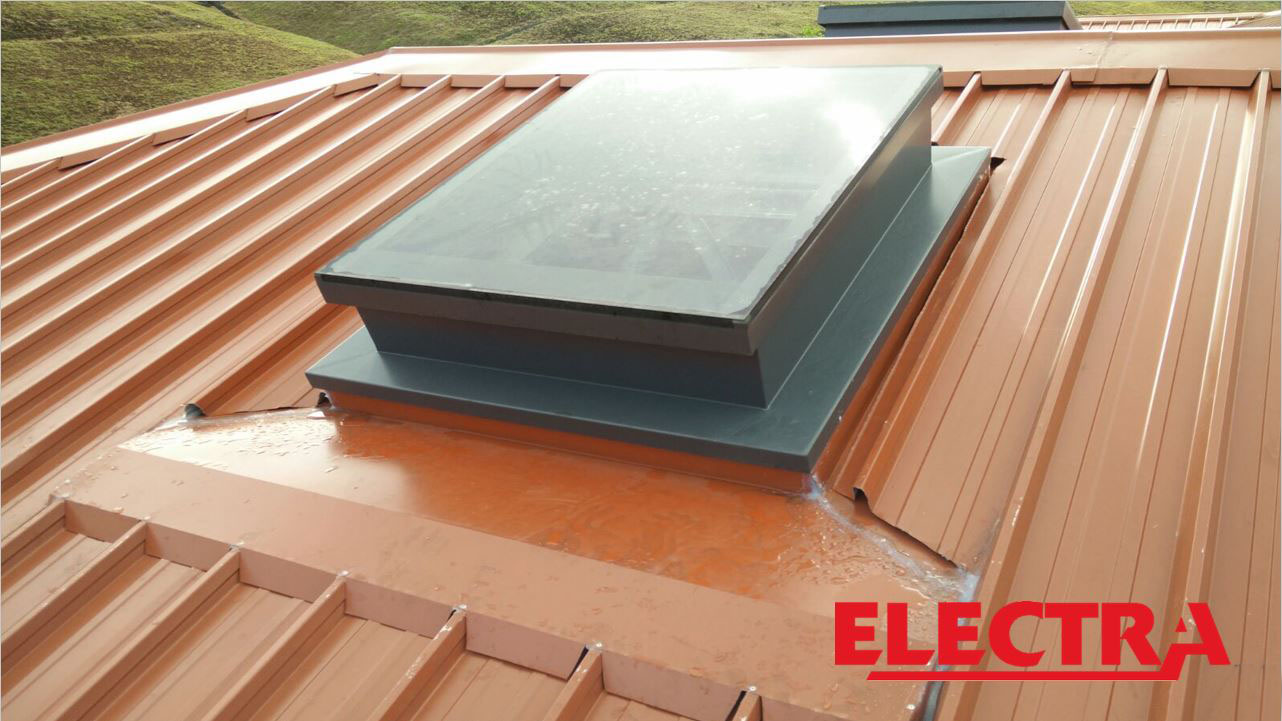

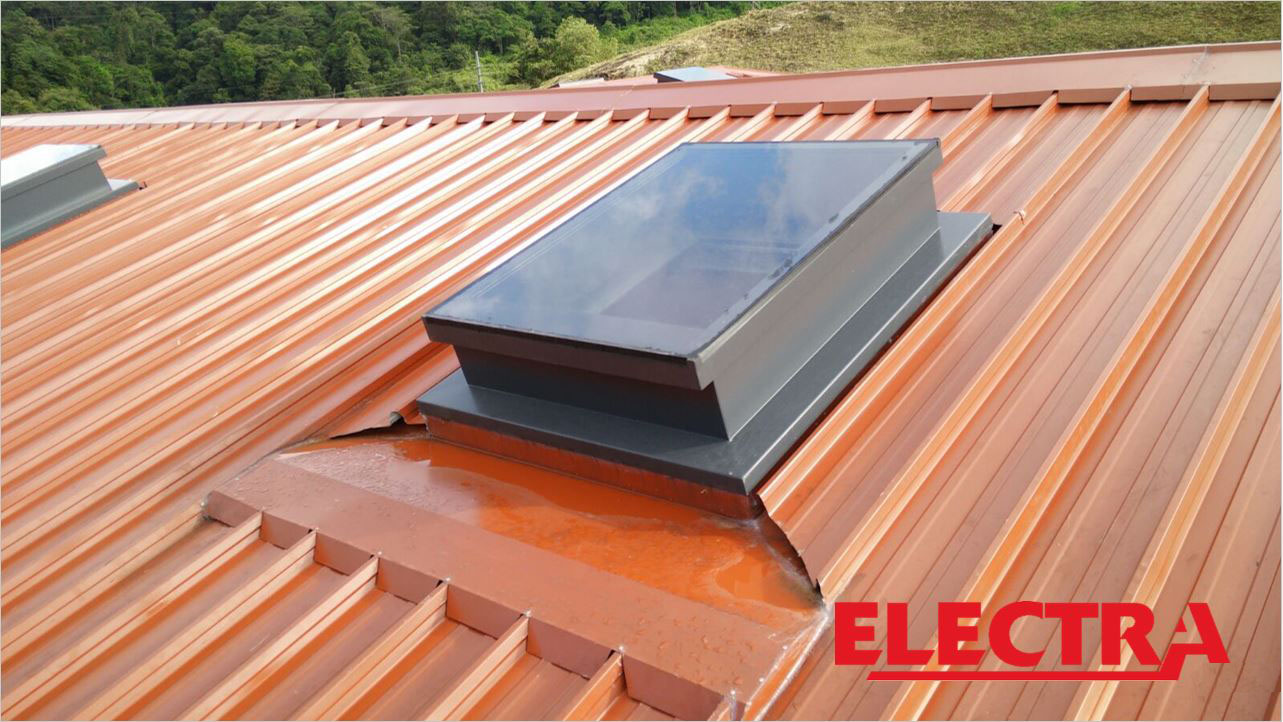

ELECTRA Ventilating Roof Window is a newly design ventilating roof window that allows you to bring in the majestic view of the blue sky into the interiors of your home or building. The roof window is fitted with high quality laminated glass to avoid discolouration. The laminated glass gives maximum impact resistance and is covered with a low emissivity film that helps block solar heat into the rooms. ELECTRA is designed to serve as a dual purpose roof window that is either for natural air ventilation and natural smoke ventilation out of the building. The roof window is also equipped with highly innovative and technologically advance window automation system actuators that electrically opens and closes the window.

The Advantages

1. Reduces the need for artificial lighting during the day.
2. Naturally lightens up dark corners of the building.
3. Provide fresh air ventilation into the interior environment of the building.
4. Natural ventilation for healthy indoor environment and energy saving.
5. Reduces air conditioning and increases night cooling.
6. Provide natural smoke ventilation for the protection of the building in case of fire.
7. Can be integrated into the building management system.

The Improved Design

1. Standard size is 820mm (w) x 1070mm (h).
2. Rectangular in shape equipped with better sealant to avoid leakage in rainy weather.
3. Fitted with high quality laminated glass to avoid discolouration. (Option: Polycarbonate Clear Glass is also available upon demand!).
4. The laminated glass gives maximum impact resistance. (Option: Polycarbonate Clear Glass is also available upon demand!).
5. The glazed glass is covered with a low-emissivity film that helps block solar heat into the rooms.
6. Frames are manufactured to be long lasting and durable.
7. Serve dual purpose either for natural air ventilation and natural smoke ventilation out of the building.

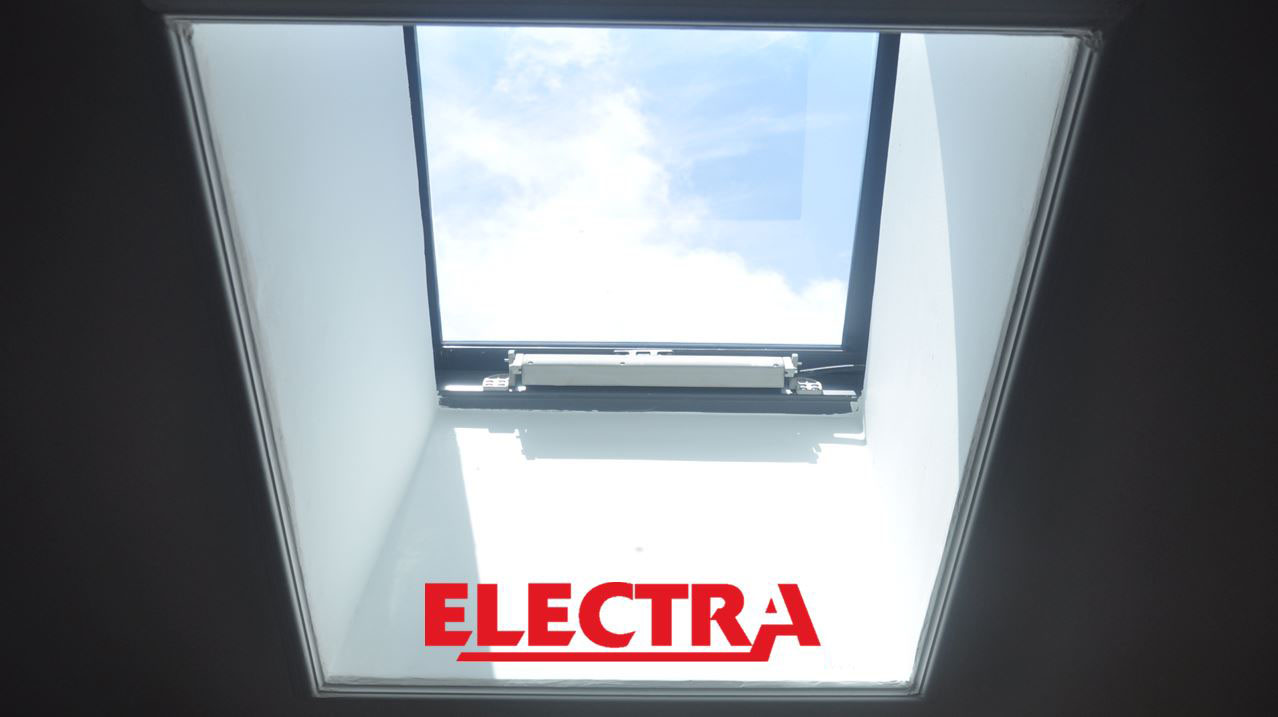

8. Equipped with Ultraflex Control System (UCS) actuators that electrically opens and closes the window. Can also be optionally equipped with thermal sensors, and remote control devices (upon demand!).

Specification Table

Technical Details	Specification
Skylight
Frame Thickness	3 mm
Material Used	Aluminium
Colour	Standard Grey (Polyester Powder Coated)
Cover Width	820 mm
Cover Length	1,070 mm
Base Width	1000 mm
Base Length	1163 mm
Height	240 mm
Glass Thickness	8.4 mm
Glass Type	Laminated Low E
Weight	35 kg
Actuators
Actuator	UCS VEGA RF RAIN
Actuator Colour	Standard Grey RAL 9006
Maximum Stroke	300 mm
Voltage Supply	100 V AC - 240 V AC
Electric Connection	4 wires + earth + 3 wires
Force (push and pull action)	250 N
Speed	~9 mm/s
Current Absorption (with max load)	0.3 A - 0.15 A
Parallel Connection	YES
Limit Stop	Electronic
Safety Stop	Electronic
Feedback Signal	-
Protection Class	IP 30 Integrated radio receiver Radio control included Cable connection for rain sensor
UCS Accessories Included	UCS RRC VEGA Remote Control UCS RS Rain Sensor

All information is correct in time of printing. Specification is subjected to change based on enquiry or custom order. For double leaf vents and natural smoke ventilation vents, do send in your enquiries to broncosynergy.net@gmail.com. ELECTRA™ are trademarks own by Bronco Synergy Resources Sdn. Bhd.
